Chicago Pneumatic Random Orbital Sanders

CP35-NV

CP35-SV

CP35-CV

Features: 5" (125mm) Random Orbital Sanders 3/16" (5mm) Orbit Powerful 0.2 hp (160W) Motor Soft Grip for Perfect Control Round and Contoured Palm for Greater Control Low Noise Level Low Vibration <2.5 m/s2 Non-Vacuum (NV), Central Vacuum (CV) or Self Vacuum (SV) Models in Hook and Loop (H&L) or PSA Pad Shut off and Speed Control Switch

Download the Finishing Catalog to view this page on the go.
Or visit our Catalogs and Downloads Center to view manuals, parts lists and more.

Specifications

Model	Part Number	Free Speed	Pad Size		Spindle Thread	Average Air Cons		Air Cons at Load		Height		Length		Net Weight		Pad Type	Air Inlet	Vac
		rpm	in.	mm	in.	cfm	I/s	cfm	I/s	in.	mm	in.	mm	lb	kg		NPTF
Orbit 3/16" (5mm)
CP3510	615 193 3510	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	6.3	160	1.63	0.74	H&L	1/4"	NV
CP3511	615 193 3511	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	6.3	160	1.63	0.74	PSA	1/4"	NV
CP3512	615 193 3512	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	8.3	211	1.72	0.78	H&L	1/4"	SV
CP3513	615 193 3513	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	8.3	211	1.72	0.78	PSA	1/4"	SV
CP3514	615 193 3514	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	7.9	200	1.74	0.79	H&L	1/4"	CV
CP3515	615 193 3515	12,000	5	125	5/16-24	8	3.8	16	7.6	4.1	105	7.9	200	1.74	0.79	PSA	1/4"	CV

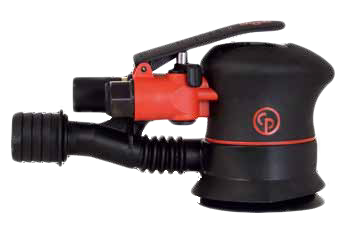

CP7225-3 & CP7255-3 - NV	CP7225-3 & CP7255-3 - CV
Features: 3" (75mm) Random Orbital Palm Sanders 3/32" (2.5mm) or 3/16 (5mm) Orbits Powerful 0.2hp (160W) Motor Soft Grip, Tear Drop Design for Perfect Control Non-Vacuum Model in Hook and Loop (H&L)or PSA Pad. Central Vacuum Dust Extraction (CV) Model in Hook and Loop (H&L) Pad Low Noise Level Low Vibration <2.5 m/s2 Shut-Off and Speed Control Switch

Specifications

Model	Part Number	Free Speed	Pad Size		Spindle Thread	Average Air Cons		Air Cons at Load		Height		Length		Net Weight		Pad Type	Air Inlet	Vac
		rpm	in.	mm	in.	cfm	I/s	cfm	I/s	in.	mm	in.	mm	lb	kg		NPTF
Orbit 3/32" (2.5mm)
CP7225-3	894 107 2257	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	5.7	145	1.38	0.63	PSA	1/4"	NV
CP7225E-3	894 127 2257	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	5.7	145	1.38	0.63	H&L	1/4"	NV
CP7225CVE-3	894 127 2258	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	7.1	180	1.45	0.66	H&L	1/4"	CV
Orbit 3/16" (5mm)
CP7255-3	894 107 2557	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	5.7	145	1.38	0.63	PSA	1/4"	NV
CP7255E-3	894 127 2557	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	5.7	145	1.38	0.63	H&L	1/4"	NV
CP7255CVE-3	894 127 2558	12,000	3	75	5/16-24	8.3	3.9	16.5	7.8	3.9	100	7.1	180	1.45	0.66	H&L	1/4"	CV

CP7220E CP7250E	CP7220SVE CP7250SVE
CP7220CVE CP7250CVE	CP7220HE CP7250HE
CP7220HCVE	CP9534 CP9674

Features: High Power, Fully Balanced, Oil Free Motor Oversized Hub Bearing with Dust Protection for Long Life Regulator with Safety Shut-Off

Specifications

Model	Part Number	Free Speed	Pad Size		Spindle Thread	Air Cons at Free Speed		Net Weight		Pad Type	Air Inlet	Vac
		rpm	in.	mm	in.	cfm	I/s	lb	kg		NPT
Palm Grip - Orbit 3/32" (2.5mm)
CP7220E	894 127 2201	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	NV
CP7220SVE	894 127 2202	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	SV
CP7220CVE	894 127 2203	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	CV
Palm Grip - Orbit 3/16" (5mm)
CP7250E	894 127 2501	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	NV
CP7250SVE	894 127 2502	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	SV
CP7250CVE	894 127 2503	12,000	6	150	5/16-24	16.6	7.9	1.7	0.80	H&L	1/4"	CV
Handle Grip - Orbit 3/32" (2.5mm)
CP7220HE	615 170 3770	12,000	6	150	5/16-24	16.6	7.9	1.9	0.90	H&L	1/4"	NV
CP7220HCVE	615 170 3790	12,000	6	150	5/16-24	16.6	7.9	1.9	0.90	H&L	1/4"	CV
Handle Grip - Orbit 3/16" (5mm)
CP9534	615 193 9534	9,000	6	150	5/16-24	19.0	9.0	2.9	1.30	H&L	1/4"	CV
CP7250HE	615 170 3740	12,000	6	150	5/16-24	16.6	7.9	1.9	0.90	H&L	1/4"	NV
CP7250HCVE	615 170 3760	12,000	6	150	5/16-24	16.6	7.9	1.9	0.90	H&L	1/4"	CV
Handle Grip - Orbit 3/8" (10mm)
CP9674	615 193 9674	9,000	6	150	5/16-24	19.0	9.0	2.9	1.30	H&L	1/4"	CV
